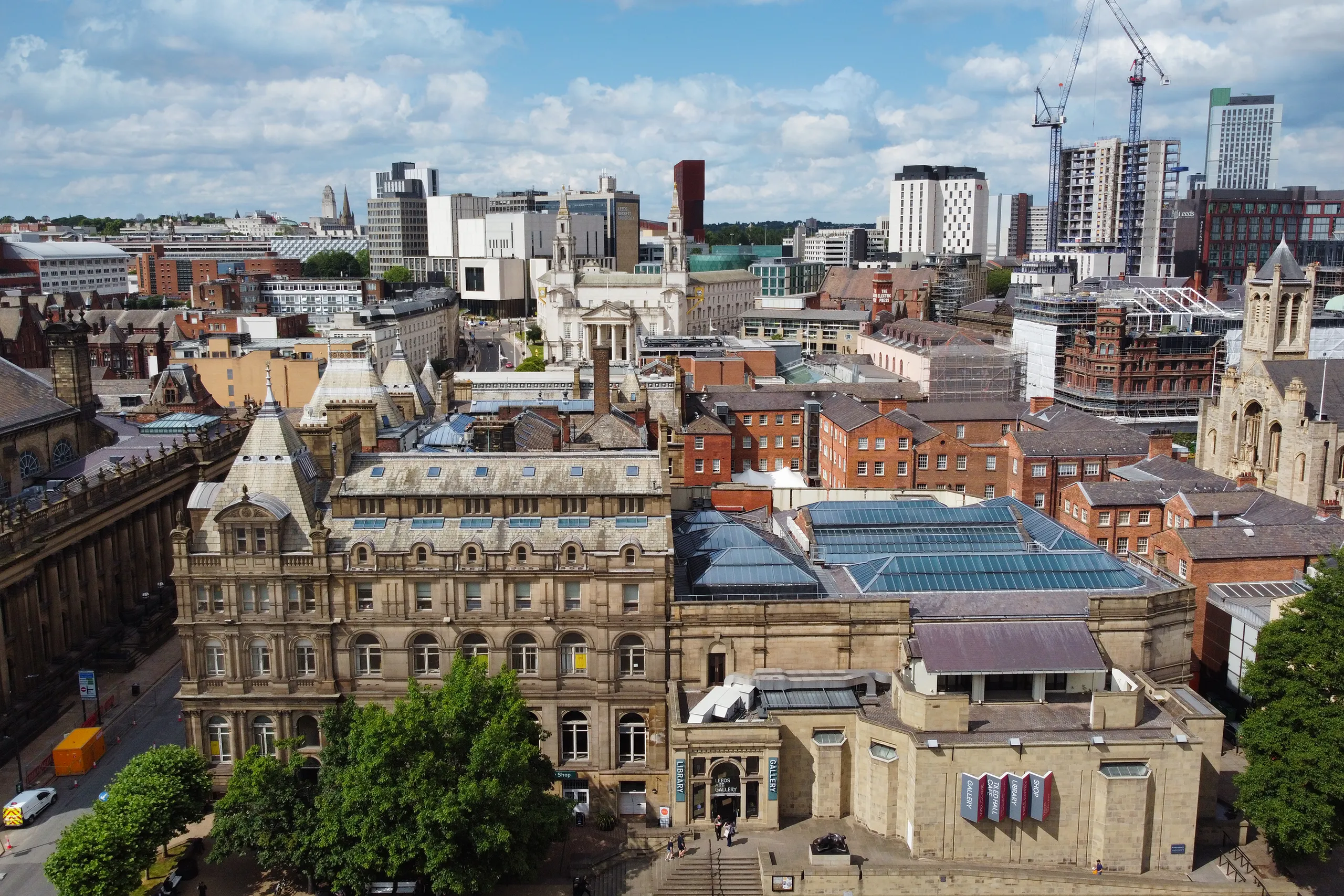

Leeds roof glazing renewal for Art Centre and Central Gallery
Green Park Station roof glazing, Bath - glazing bar spans
London Skyline domestic roof glazing
skyline glazing

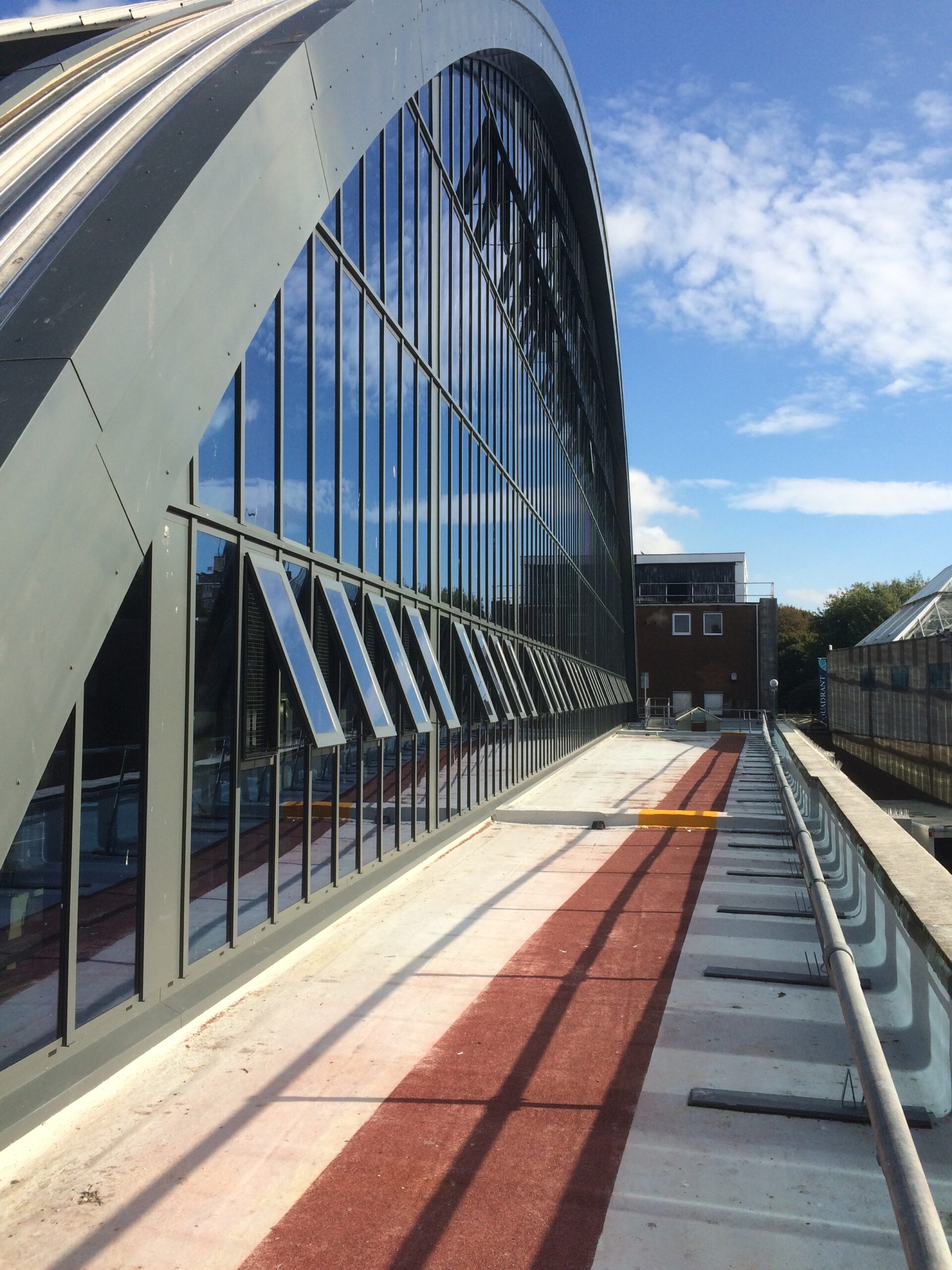

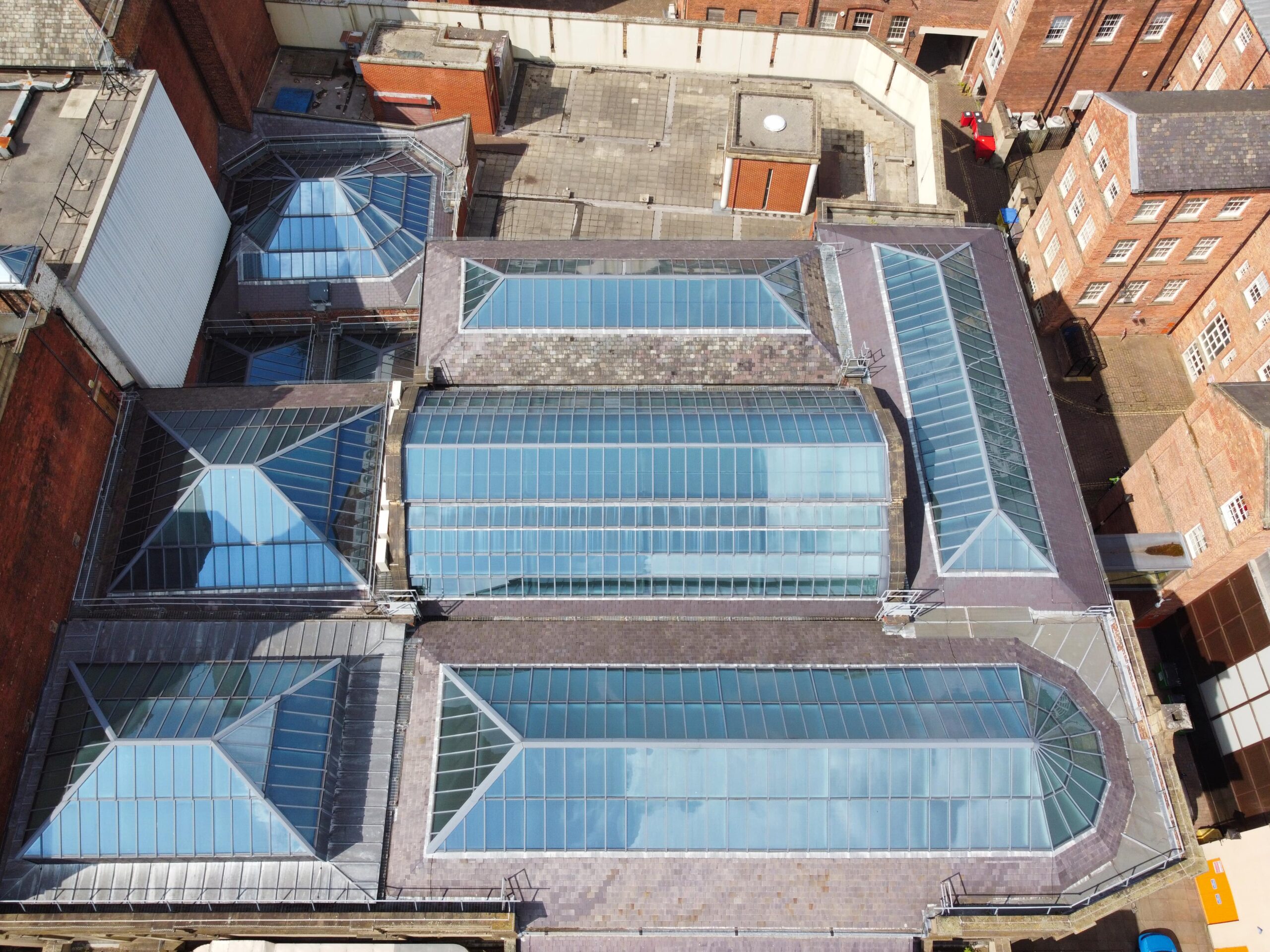

Swansea market - external

Downloads

Product Brochure Company Brochure
View all CAD Drawings & H10 Specs
Skyline product brochure

Skyline is a thermally broken aluminium glazing bar system designed for rooflights and skylights as well as modern glass roof applications. These slim-profile glazing bars sit in-line with the roof to create sleek roof glazing systems suitable for both commercial and domestic architectural projects.

As part of our wider patent glazing systems range, Skyline provides a versatile aluminium glazing solution for contemporary roof glazing designs. The system is available with a selection of internal and external capping options, enabling multiple glazing configurations from a single suite and making it particularly well suited to double and triple glazed rooflight installations where thermal efficiency and slim sightlines are required.

Skyline glazing bars are also suitable for single glazed canopies and other lightweight roof glazing applications. Their adaptable design allows seamless integration into both new build and refurbishment projects, providing a cost-effective glazing solution without compromising durability, appearance or performance.

Aluminium glazing bars for rooflight systems

The Skyline system provides thermally broken aluminium glazing bars engineered for rooflight systems, skylights and contemporary roof glazing designs.

Advantages

  • Slender section
  • Concealed capping fixings
  • ‘L’ Reg compliant
  • Thermally broken
  • Suitable for accepting opening vents
  • Suitable for skylights
  • Suitable for canopies/walkways
  • Single, double or triple glazed options

Considerations

  • Internal stalks of the Skyline range are removed at the top and bottom positions of the glazing with a small gap to allow for tolerance for discrepancies within the supporting structure.  If the supporting rails are not constructed accurately then uneven visible cut-out lengths of the stalks become noticeable. This may require additional builders work to mask the out of line supports.
SDA-AAA-AA1 skyline glazing

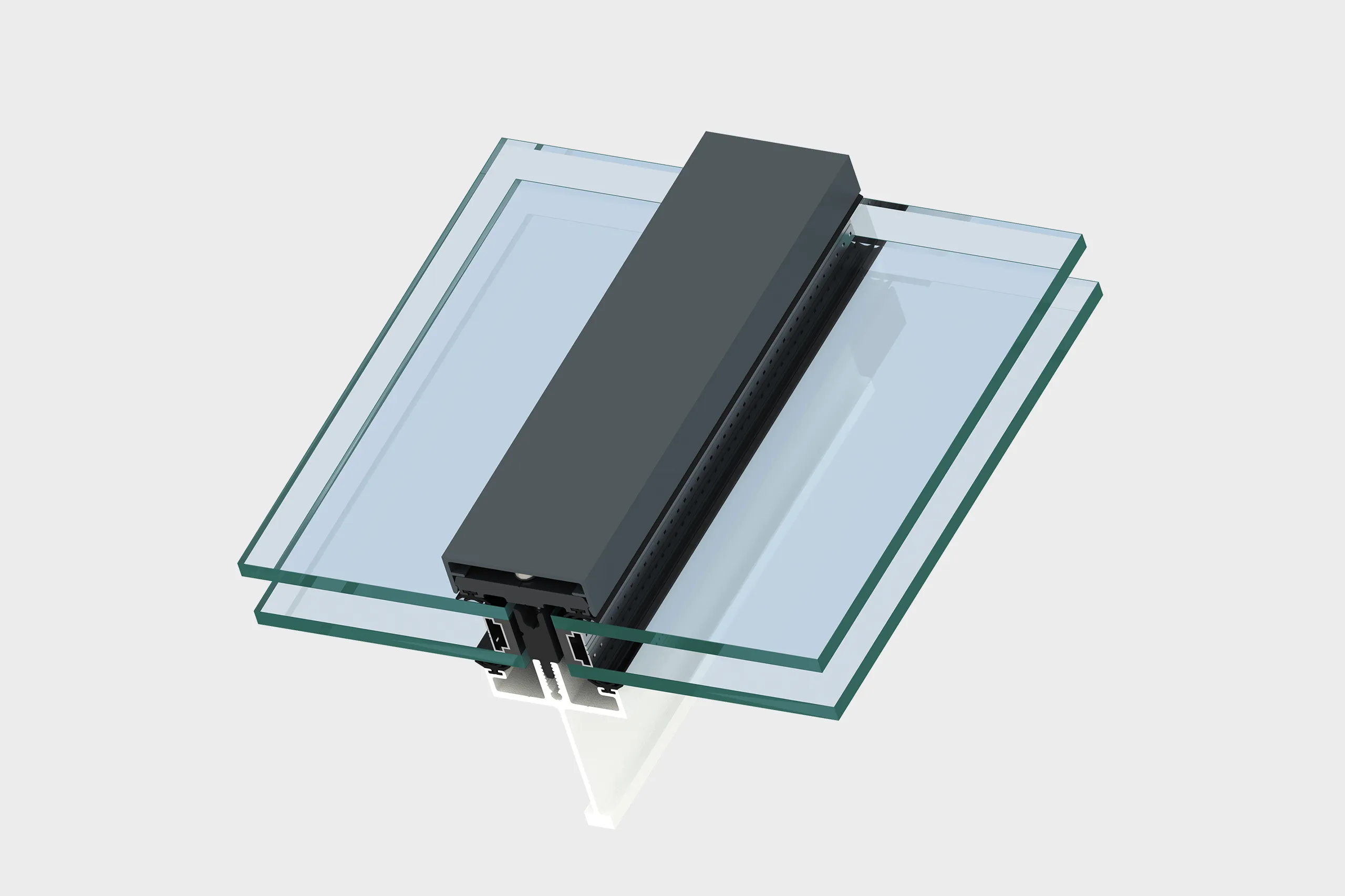

Double Glazing System – Skyline SPG2 type thermally broken extruded aluminium glazing bar with screw-on PC5 capping and snap-on cosmetic square topped PC2 capping section – double glazed with 28mm thick double glazed units.

SDA-AAA-AA2 skyline glazing

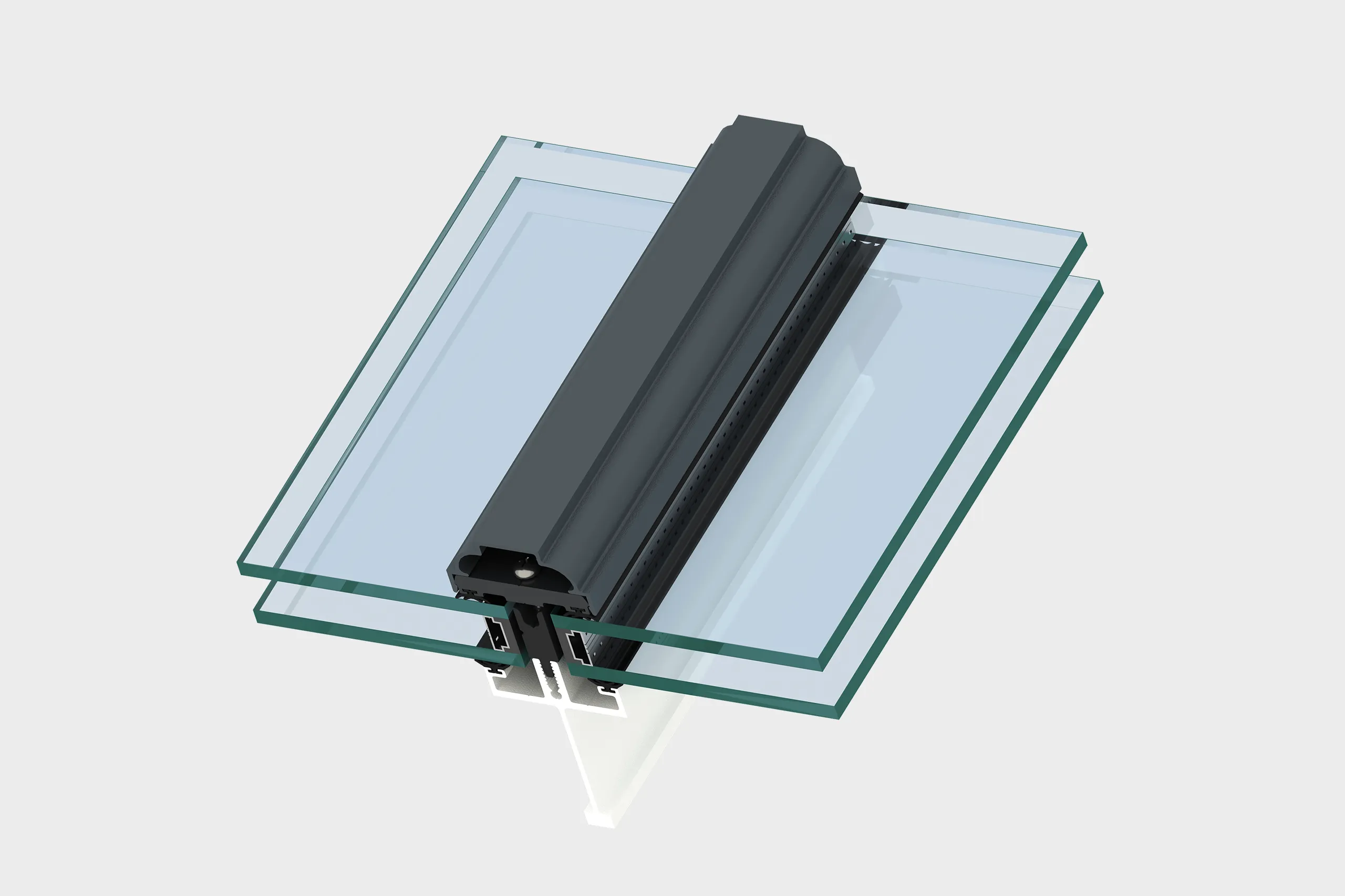

Double Glazing System – Skyline SPG2 type thermally broken extruded aluminium glazing bar with screw-on PC5 capping and snap-on cosmetic ornate topped PC3 capping section – double glazed with 28mm thick double glazed units.

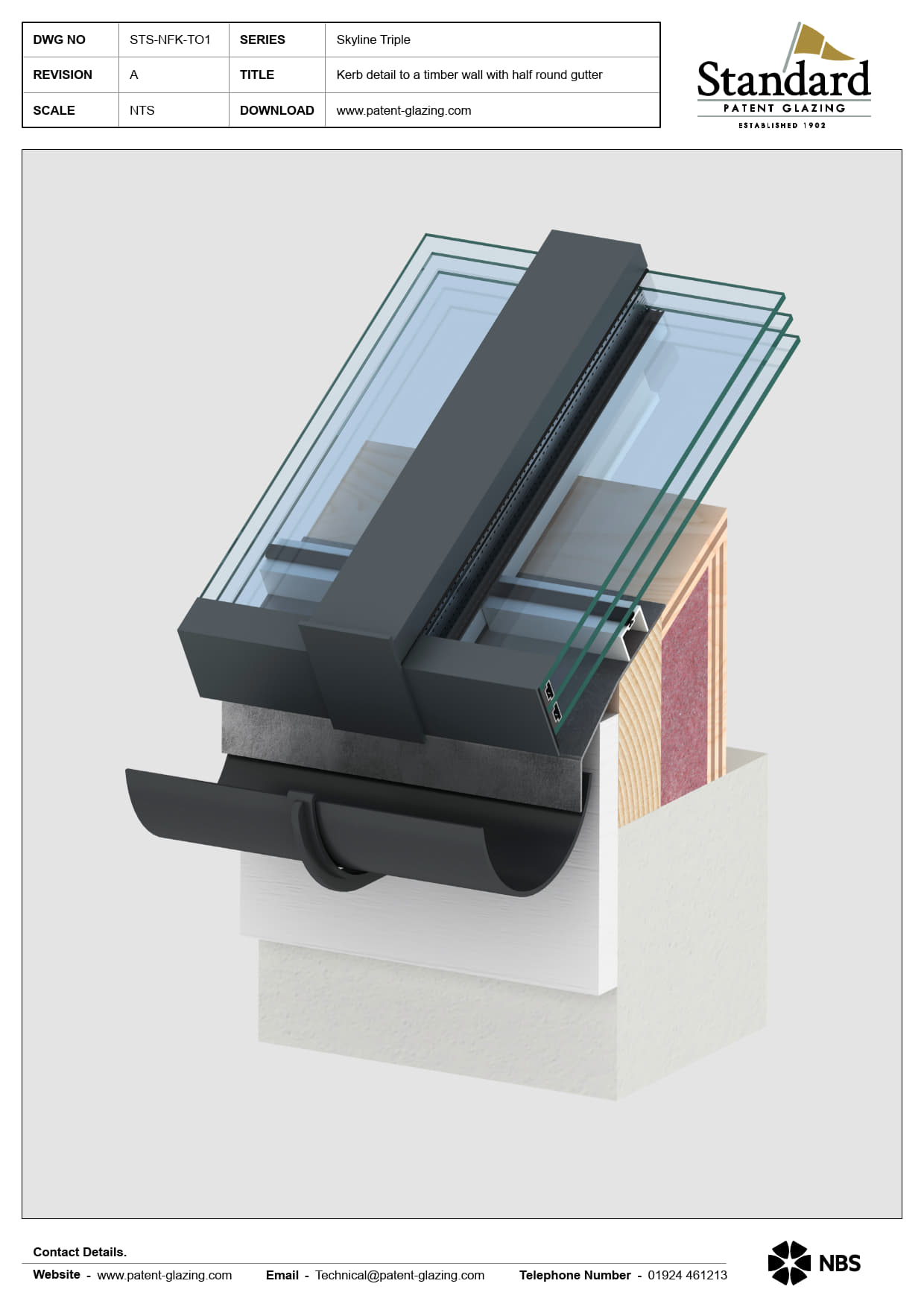

STA-AAA-AA1 skyline glazing

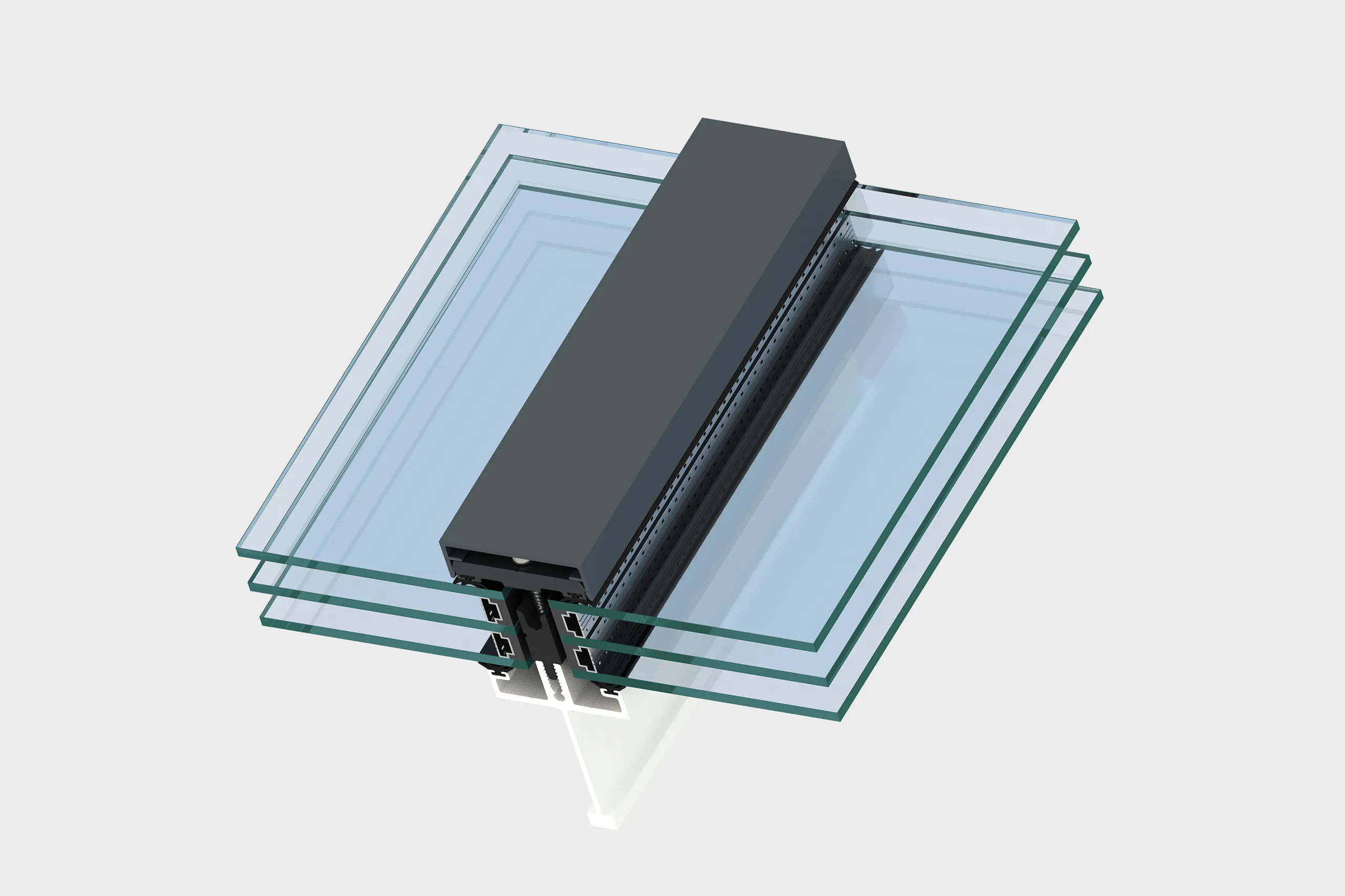

Triple Glazing System – Skyline SPG2 type thermally broken extruded aluminium glazing bar with screw-on PC5 capping and snap-on cosmetic square topped PC2 capping section – double glazed with 44mm thick triple glazed units.

STA-AAA-AA2 skyline glazing

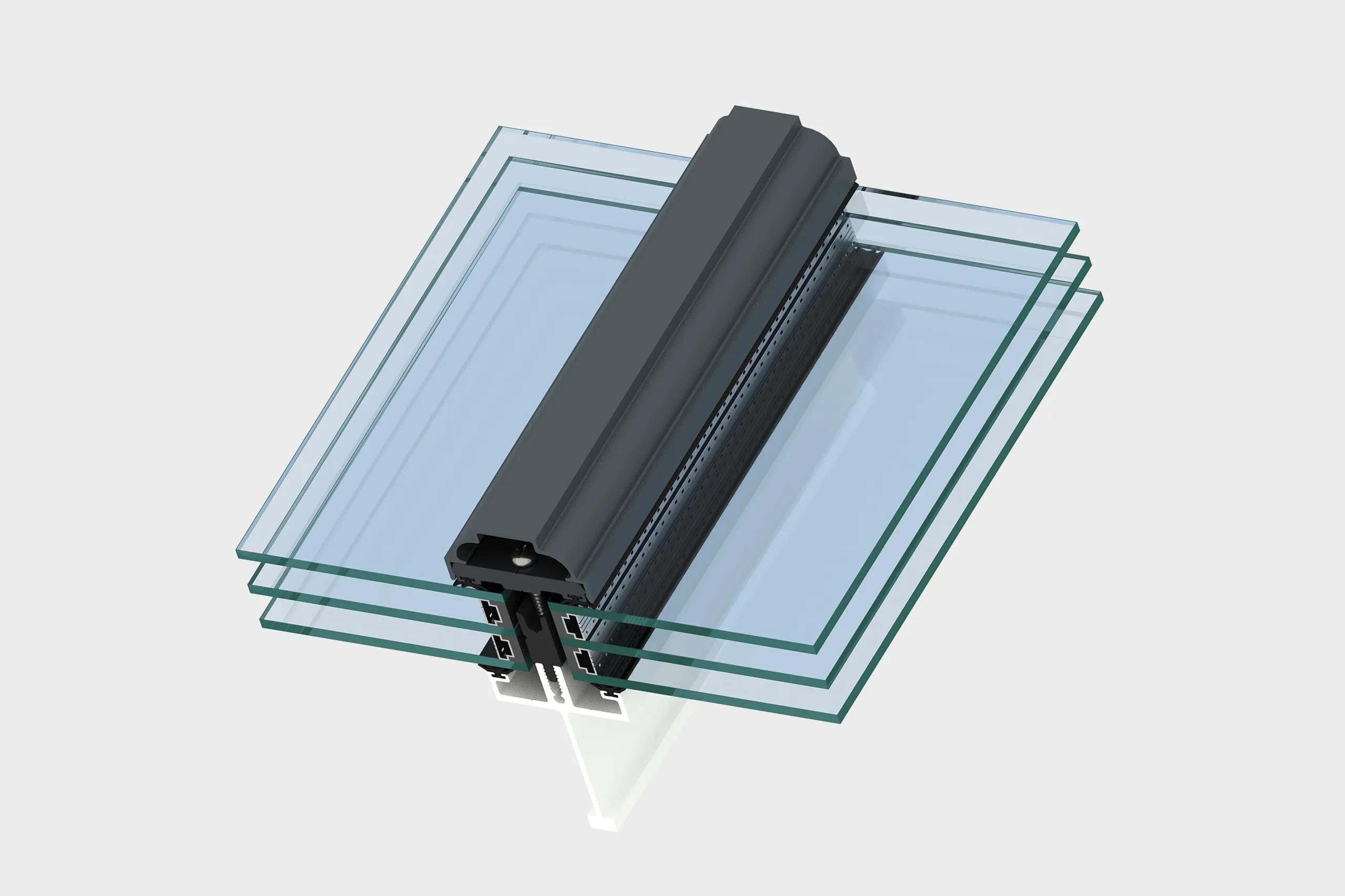

Triple Glazing System – Skyline SPG2 type thermally broken extruded aluminium glazing bar with screw-on PC5 capping and snap-on cosmetic ornate topped PC3 capping section – double glazed with 44mm thick triple glazed units.

Our Skyline range of glazing bars offer an economical roof glazing solution incorporating slim sightlines.  The glazing bar’s strength is provided by an internal stalk (or fin) which is cut away at the top and bottom main fixing positions.
An internal snap-on ornate capping system (PC4) is also available if desired to fully conceal the internal stalk giving the appearance of a feature timber rafter.

The glazing bar is weathered by a screw on pressure cap with a choice of plain (PC2) or ornate (PC3) cosmetic outer snap-on cappings to conceal all fixing screws.

This system is able to accommodate double and triple glazed applications where compliance with Building Regulations Document L are a requirement but is also popular for single glazed applications such as feature canopies and unheated spaces.

Available in three sizes depending on the design span with fin depths of 50mm, 70mm and 100mm.  This glazing system is capable of spanning up to 4 metres unsupported with double glazed infills weighing 30kg/m².

Discover our latest brochures!

Our new range of brochures are now available to download, offering a comprehensive look at our full product line and capabilities.

Download brochures

Span Chart

Performance Data for Skyline patent glazing bars

Bar Section
SPG2
SPG3
SPG4
Fin Depth (mm)
55
75
100
Lxx-mm4
240,628
500,995
1,296,896
Zxx-mm3
5,032
8,318
18,875
Roof Span (mm)*
Double Glazing
1050-2630
1520-3530
2450-4470
Single Glazing
2000-3290
3500-4220
5000-6000
Canopy Glazing
1510-2810
1950-3610
2930-4970

The glazing bar spans shown above are based on using 6mm thick glass for the double glazed, single glazed and canopy types and the bars being spaced at 600mm centres. We will select the appropriate glazing bar for each contract.  Spans are dependent upon the site location and exposure rating, site altitude, distance from the sea, height of glazing from ground level, shape of the roof, pitch of glazing, glazing bar centres, glass weight, wind speeds, snow load, dead load and maintenance loads.

*The above spans for each glazing bar have two values.  The lower span values are calculated using the most extreme environmental loadings possible in the UK whereas the higher span values are based on the least extreme. Due to the wide range of these values it is therefore essential that we are supplied with the site postal code to enable us to calculate the correct glazing bar type for every project. There are a large number of variables which are used to determine the maximum span of the glazing bars so please do not attempt to buy any glazing bar materials from us without first allowing us to carry out the necessary calculations for your project

Skyline frequently asked questions

  • What is a Skyline glazing system?

    A Skyline glazing system is a low-profile patent glazing bar designed to sit in-line with the roof. It is thermally broken, available with different capping options and suitable for single, double or triple glazed applications in rooflights, skylights, canopies and walkways.

  • Can Skyline glazing be used for domestic projects?

    Yes, Skyline glazing systems are suitable for both domestic and commercial projects. They are often used in rooflights for homes as well as larger architectural applications, offering slim sightlines, energy efficiency and design flexibility.

  • What are the span limits of Skyline bars?

    Skyline glazing bars are available in three fin depths (50mm, 70mm, and 100mm), capable of spanning up to 4 metres unsupported with double glazed infills. Exact spans depend on factors such as glass type, loading, site exposure and roof design.
